6X Faster
Output Power: 580W Max.


Fit For All FOSSiBOT Models
99% of third-party power stations


12V/24V Hight Compatibility
Fuel-powered Vehicles


Professional Cooling System


Superior Protections
Protect Car Battery,And Power Station


Auto On/Off Prevent Battery Drain
6X Fast Charging On The Go
The FAC580 delivers up to 580W of power,6X faster than a traditional in-vehicle cigarette charger.
FAC580
580W Max.


*Data Based On FOSSiBOT Lab

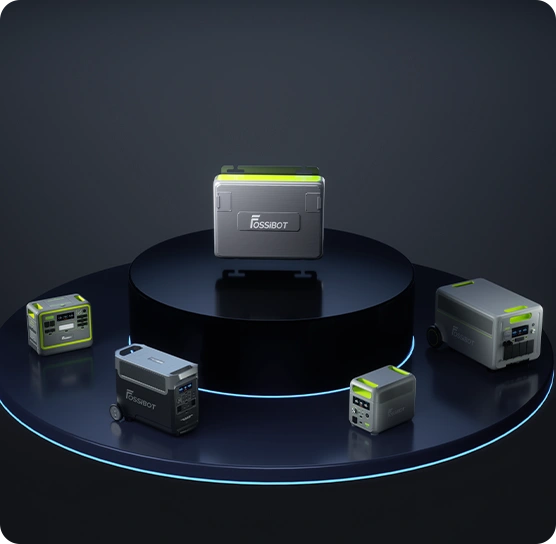

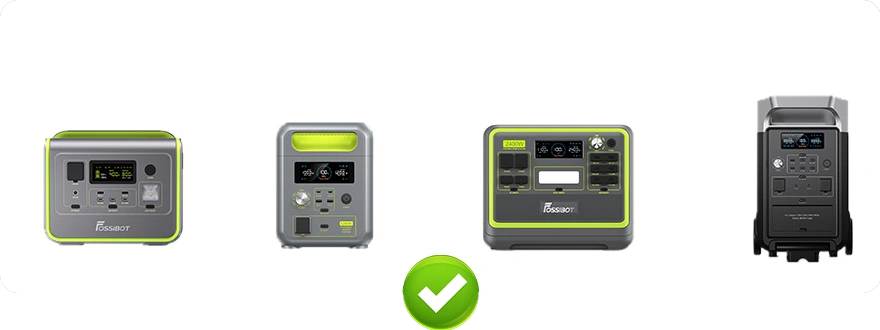

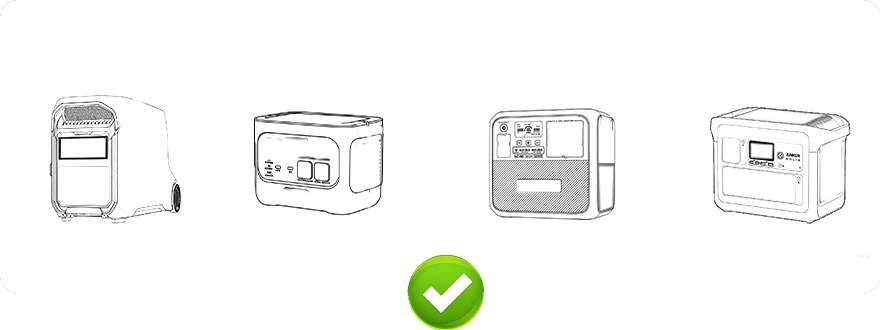

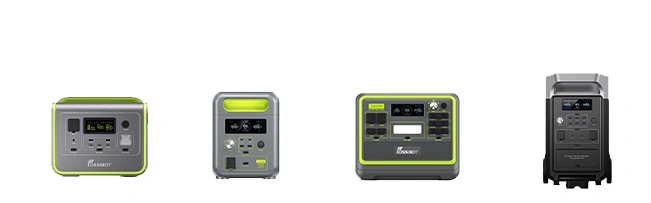

Fit For All FOSSiBOT Models
And 99% of Third-party Power Stations.
And 99% of Third-party Power Stations.

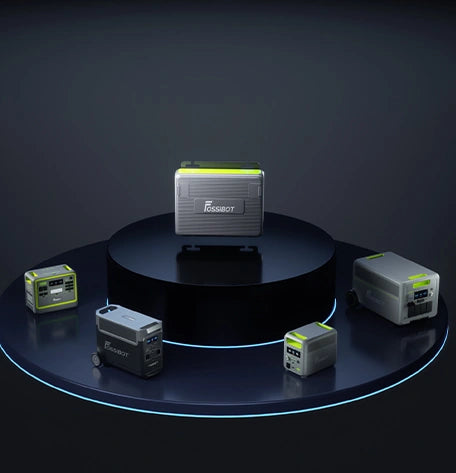

Compatible with all FOSSiBOT Products

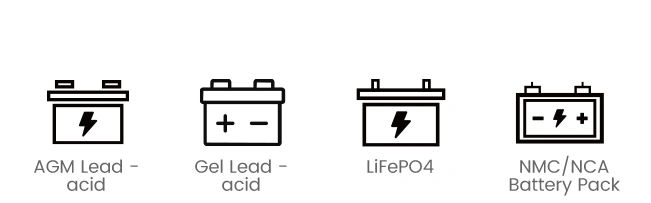

Compatible with various battery types


Compatible with 99% of third-party power banks


*Support power output of 48V or above

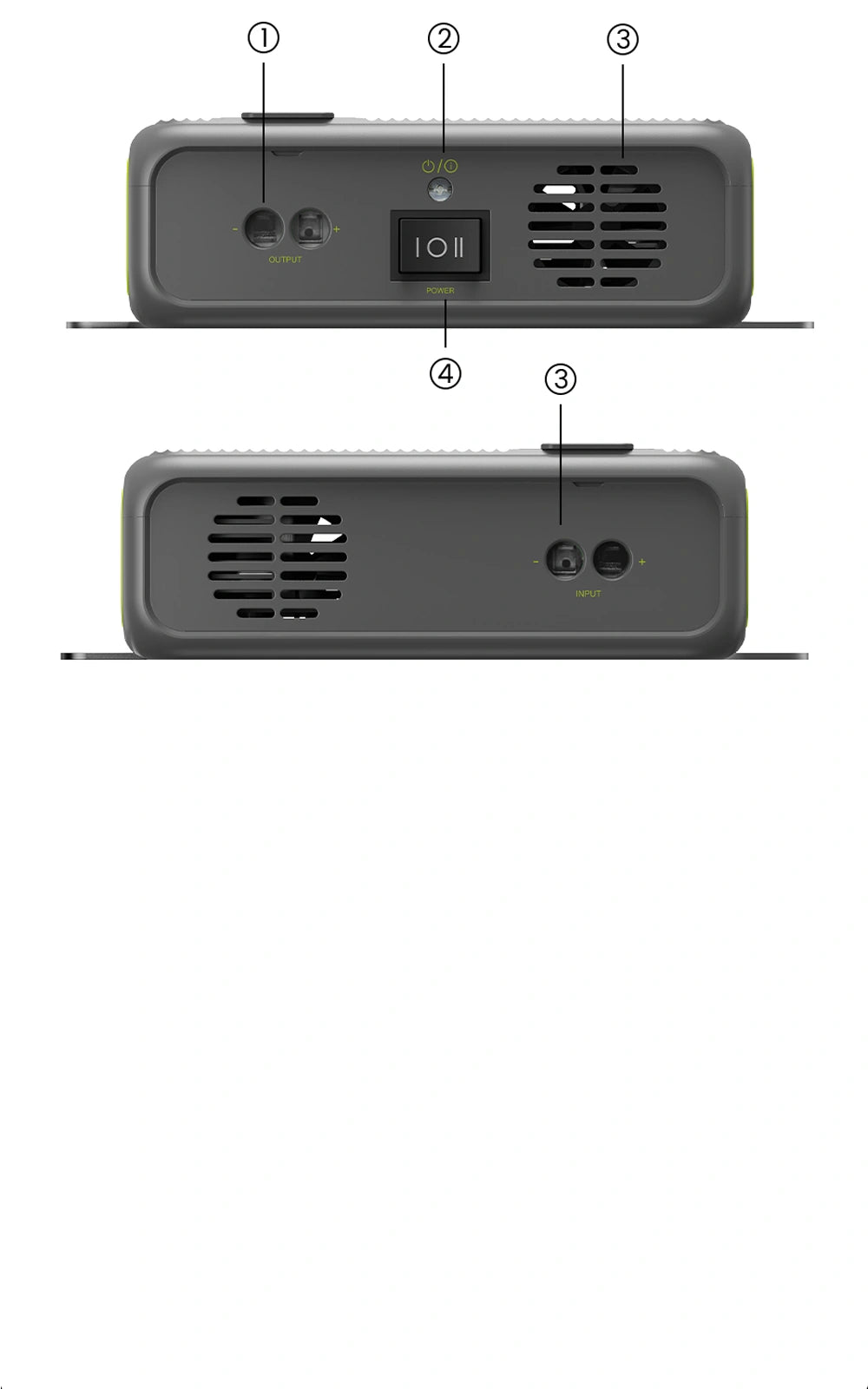

Two-stage Power Switch For Different Voltage
The FAC580 charger will automatically adjust the output power according to the input voltage. When the input
voltage is out of the voltage range, it automatically stops charging.

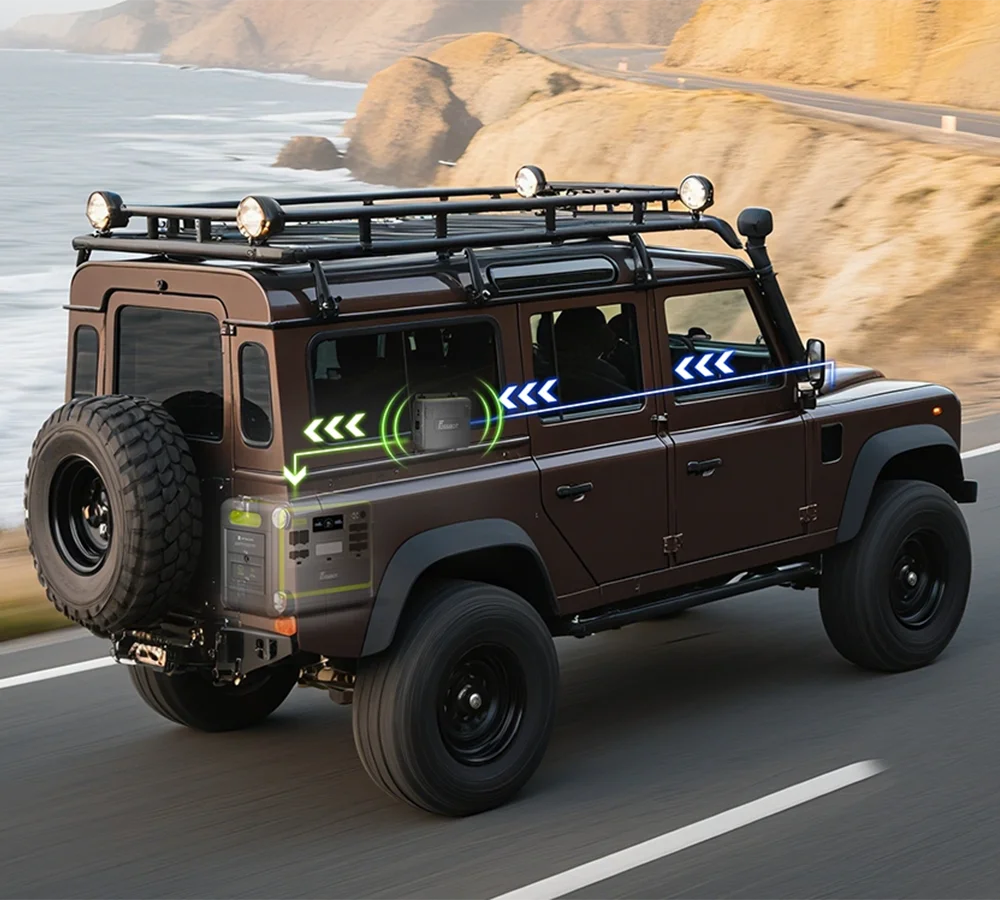

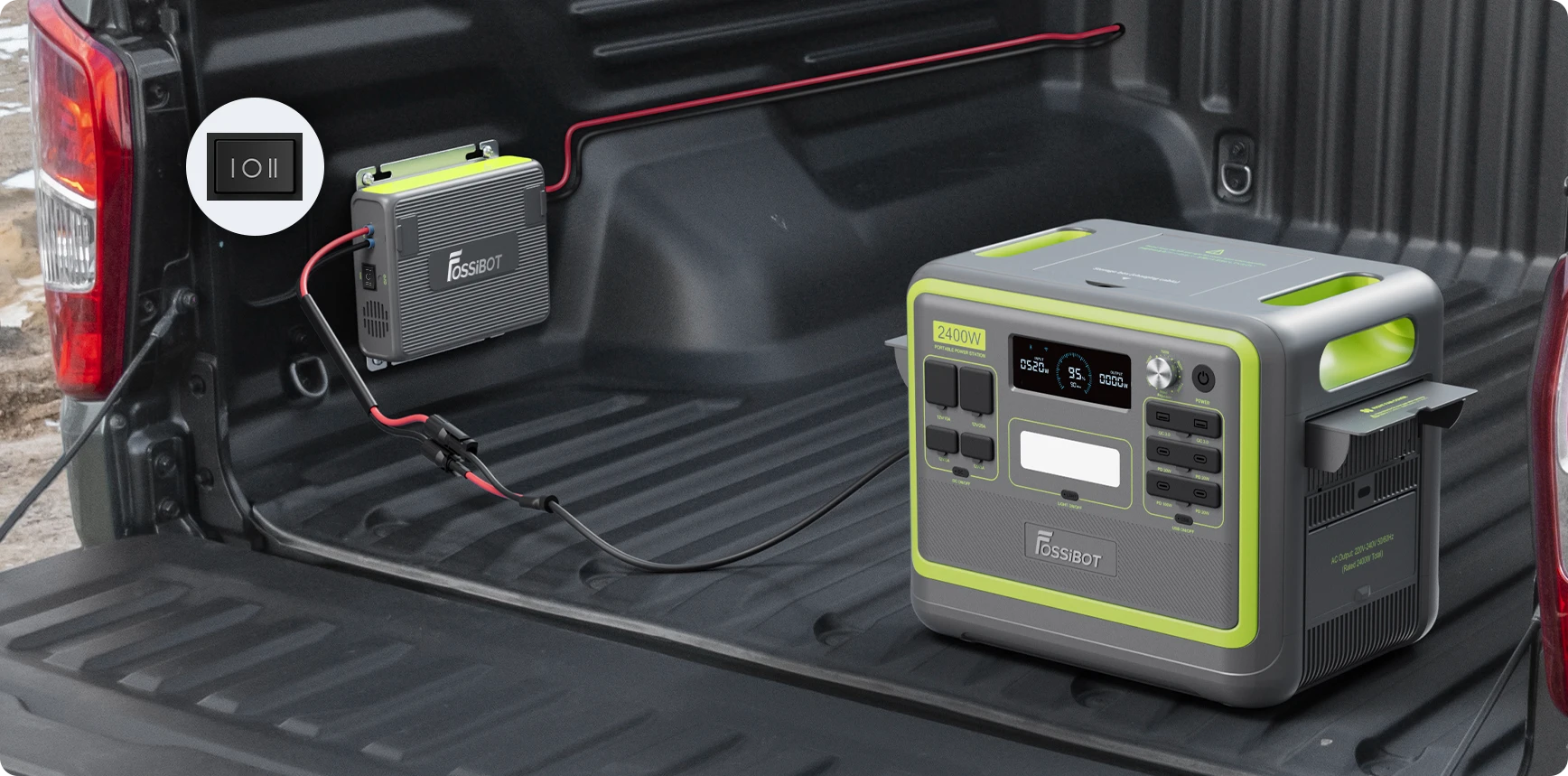

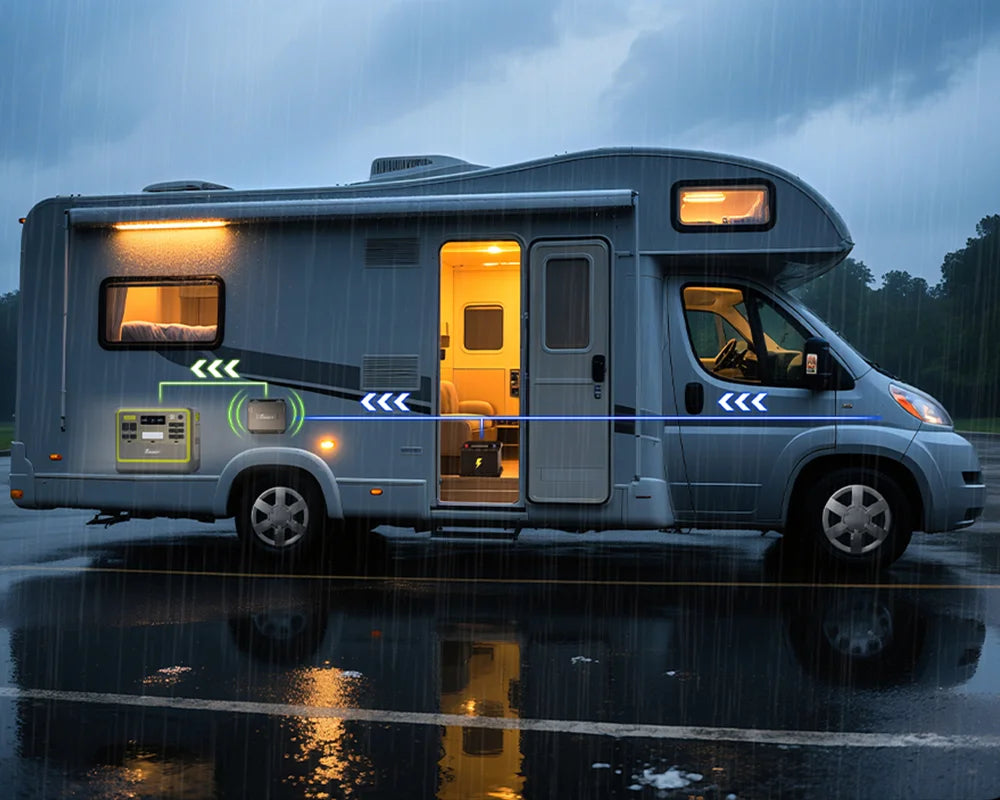

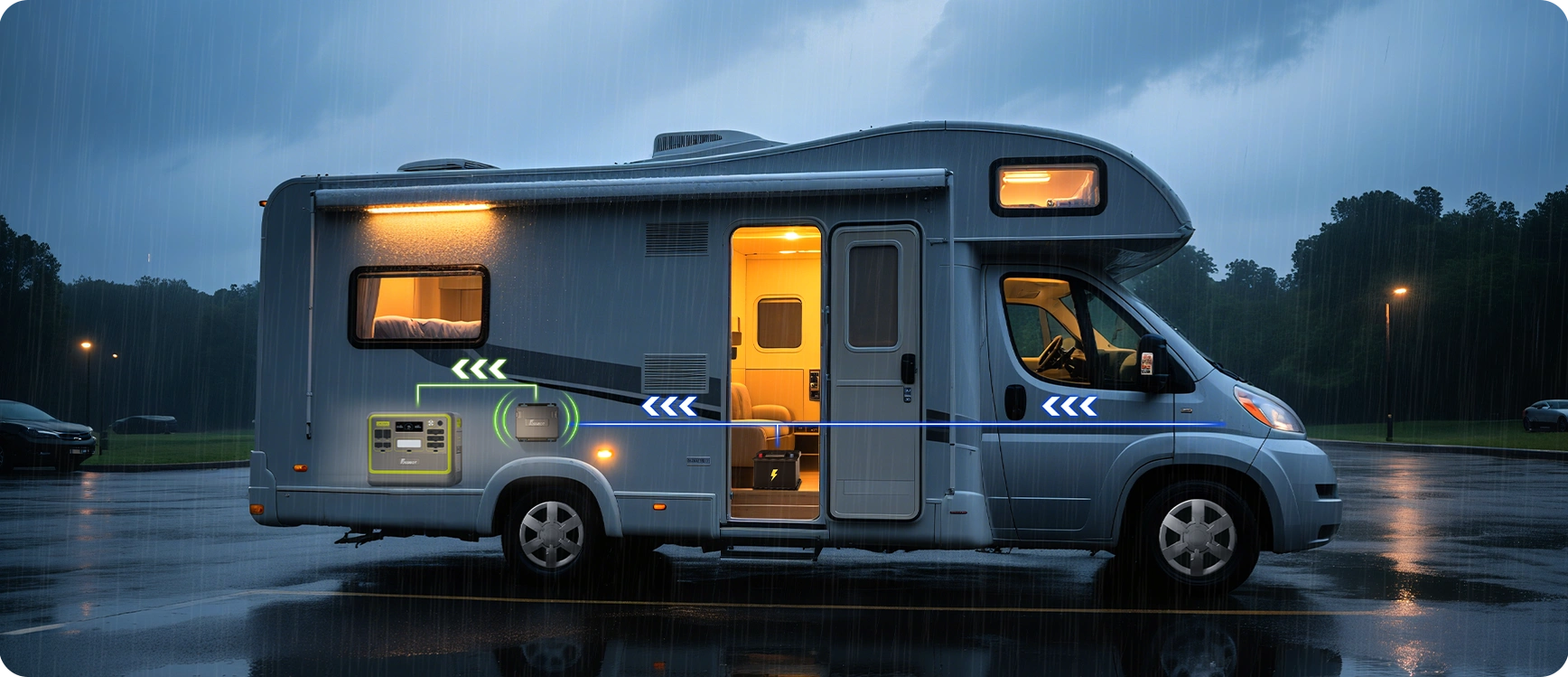

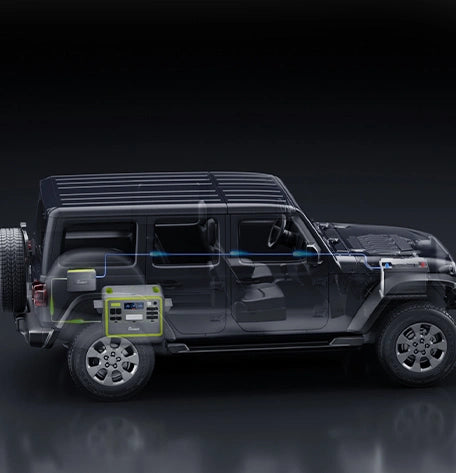

Road-Powered,Adventure-Ready
Switch to model 1, every mile of travel can store power, and you can use it as you go without having to wait
until you reach your destination.This way, you have more freedom when it comes to using electricity.
- * Input Voltage: 13.2~14V → 300W Max Output
- * Input Voltage: >14V → Auto boost to 580W (Fast)
- * Input Voltage: <13.2V → Auto Cust Off


Emergency Engine-Off Charging
When you need urgent power with the engine off,simply switch to Mode 2.FAC580 instantly powers your power
station and protects your car's battery while charging.
- * 300W Max Output: (Vol.12V-12.75V)
- * 580W Max Output: (Vol.>12.75V)
- * Automatically cuts off(Vol.<12V,protects your car battery)


Provide Motivation for Your Freedom
Charge while you drive and enjoy power upon at your Camping Ground, no waiting any more.

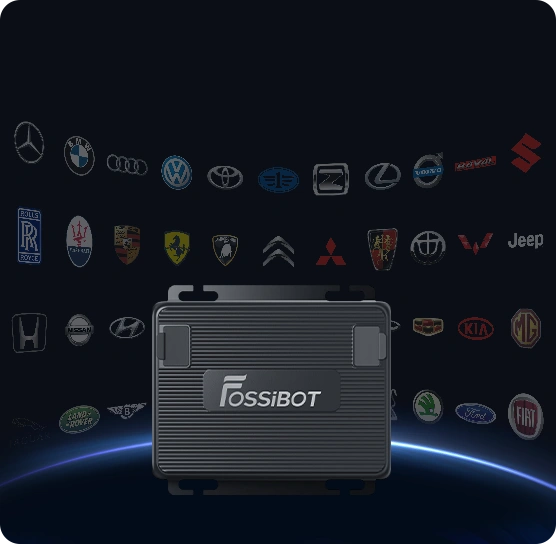

Suitable For Various Car Models

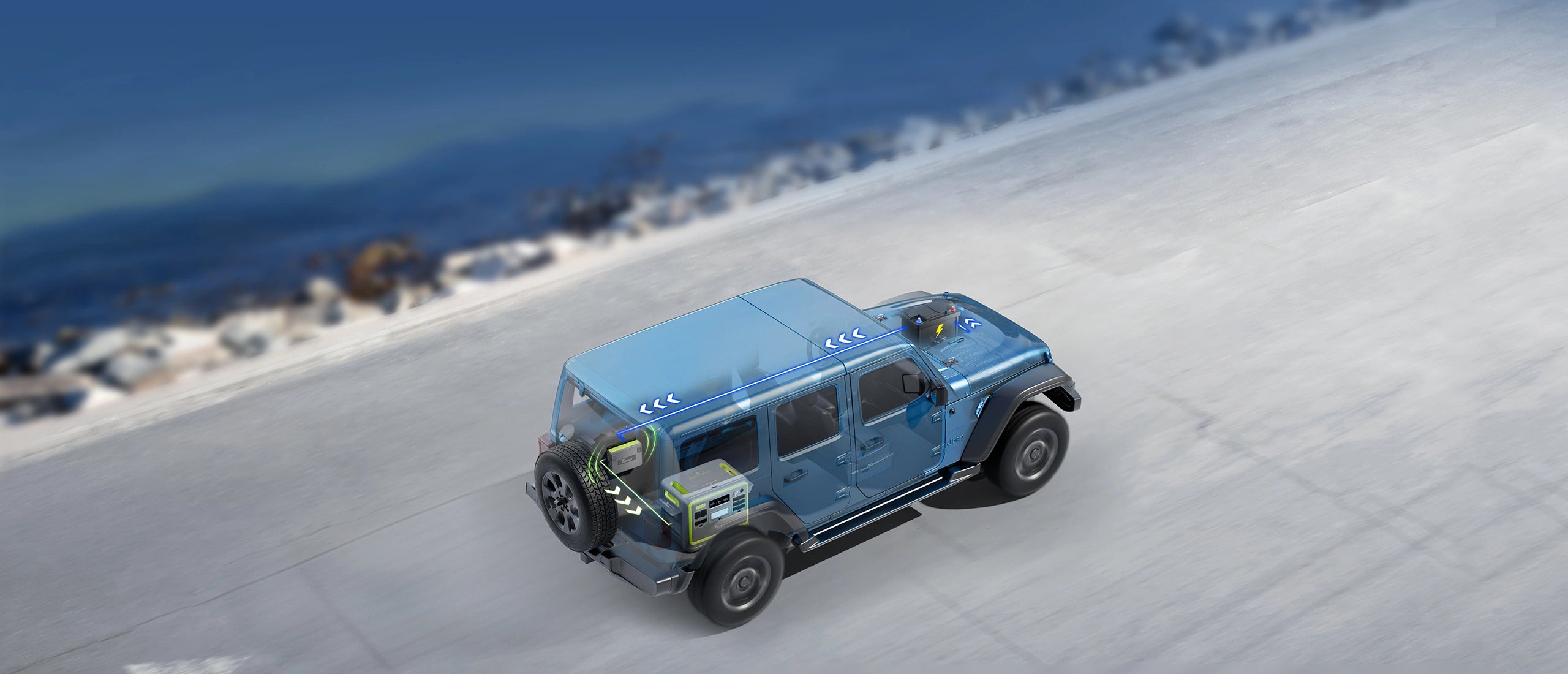

Go Further, Stay Powered!
No sun, no fuel—just the open road. The DC-DC FAC580 Alternator Charger keeps your adventure charged wherever
you go. Charge while you drive, made for life outdoors!
Power Supply Method
FAC580
Fuel Generator
Portability
Lightweight ✔️
Bulky
Noise Level
Silent ✔️
Loud
Environmental Restrictions
All-weather ✔️
Disabled in rainy days
Battery Life
Charges while driving ✔️
Dependent on fuel
Power Supply Method
FAC580
Solar Panel
Portability
Lightweight ✔️
Moderate
Noise Level
Silent ✔️
Silent
Environmental Restrictions
All-weather ✔️
Requires sunny days
Battery Life
Charges while driving ✔️
Unstable ❗
Power Supply MethodFAC580
Power Supply MethodFuel Generator
PortabilityLightweight
PortabilityBulky
Noise LevelSilent
Noise LevelLoud
Environmental RestrictionsAll-weather
Environmental RestrictionsDependent on fuel
Battery LifeCharges while driving
Battery LifeDependent on fuel
Power Supply MethodFAC580
Power Supply MethodSolar Panel
PortabilityLightweight
PortabilityModerate
Noise LevelSilent
Noise LevelSilent
Environmental RestrictionsAll-weather
Environmental RestrictionsRequires sunny days
Battery LifeCharges while driving
Battery LifeUnstable

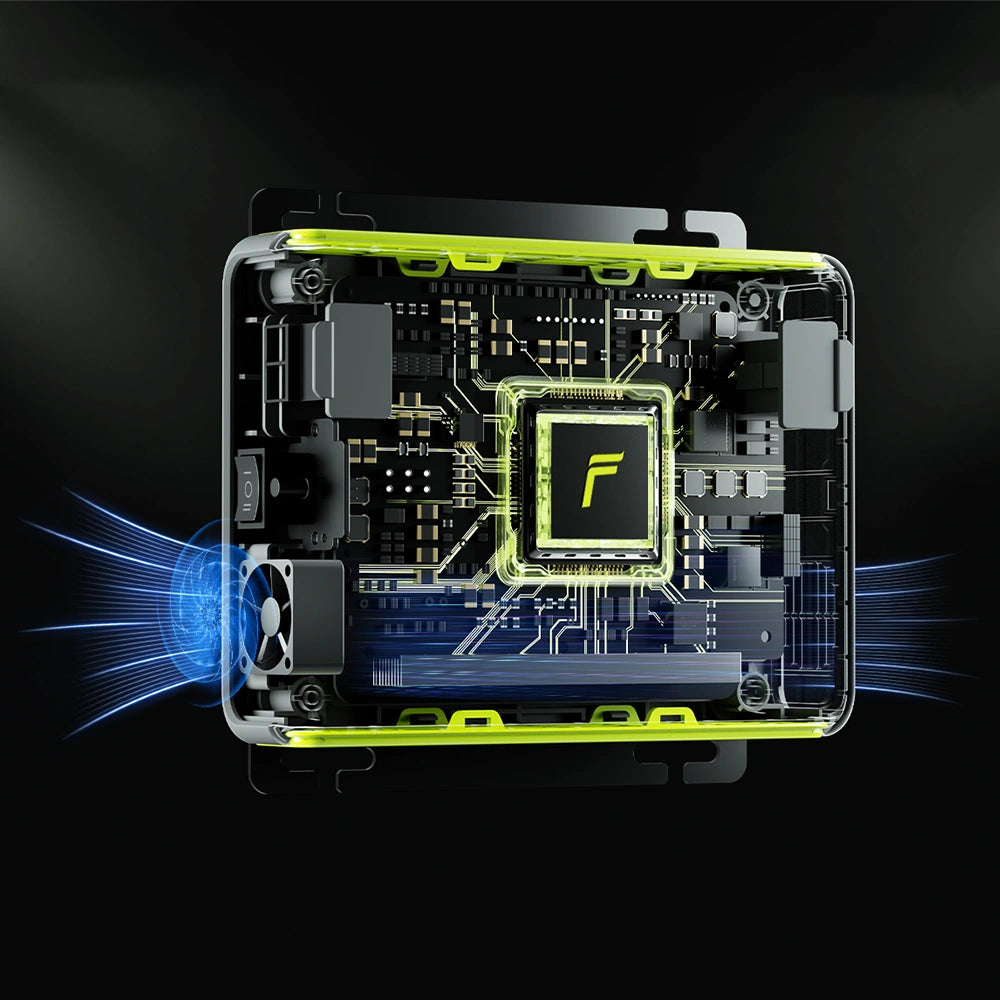

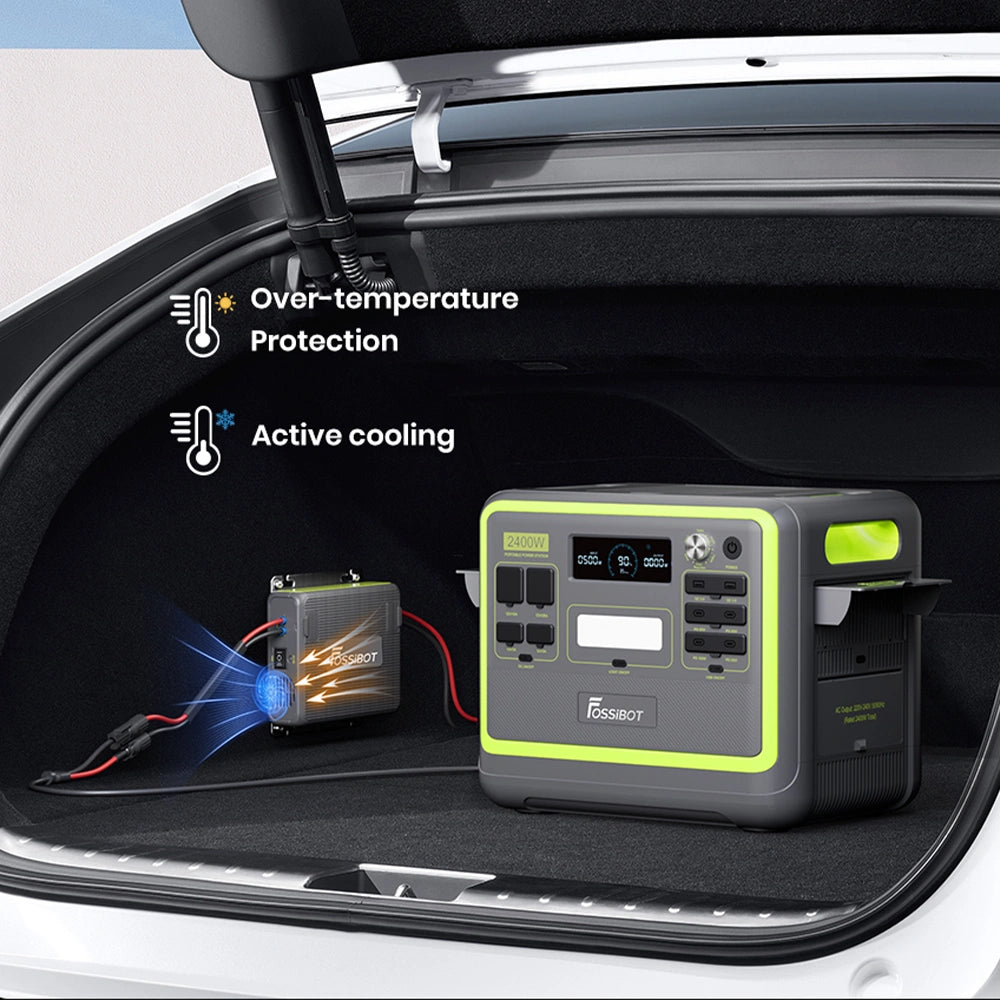

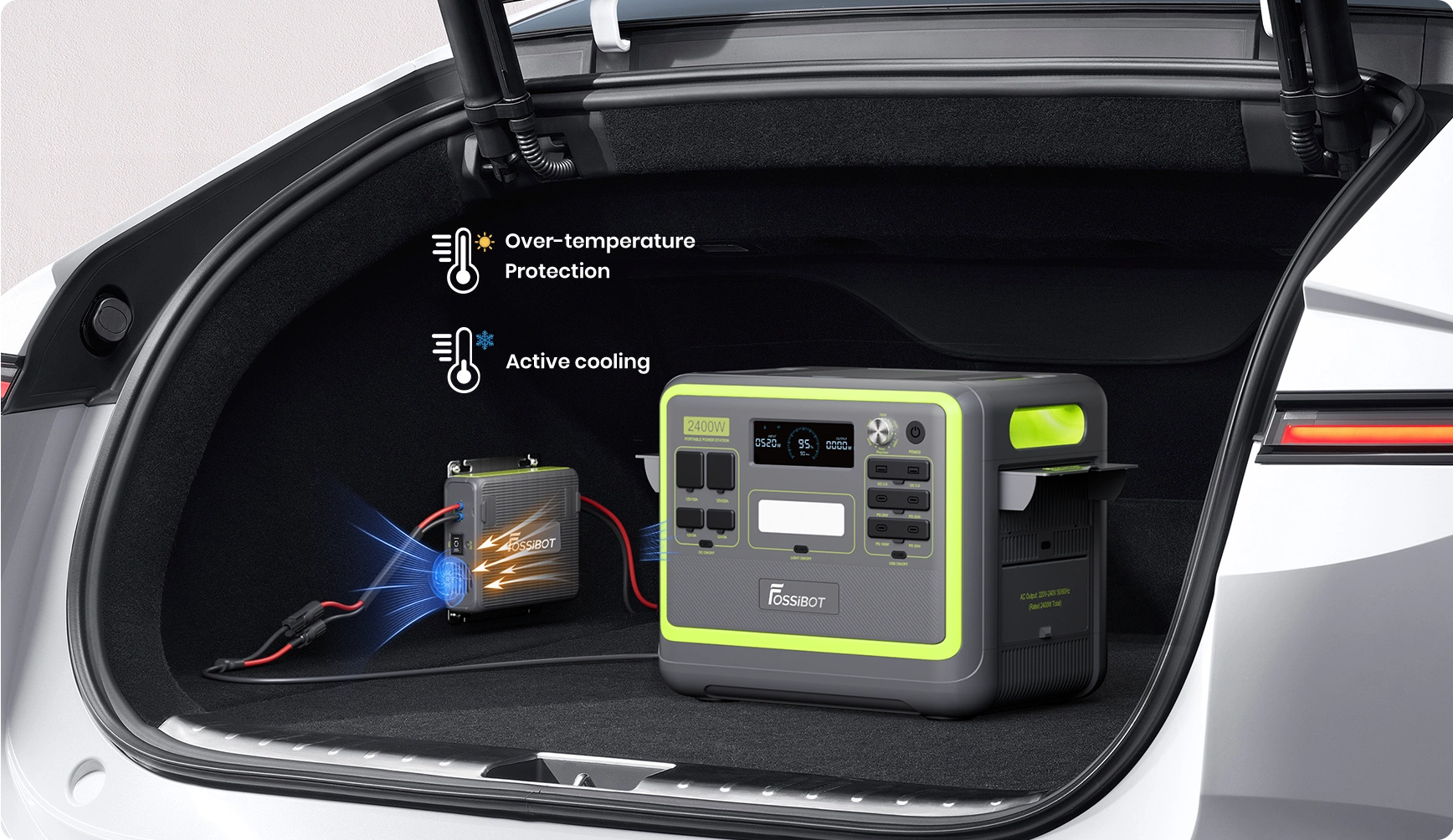

Professional Cooling System
FAC580: Left fan & right vent cooling ensures smooth operation and stable charging power.


Multi-layer Protection
With Multi-Protection (High/Low Voltage, Over-Curent, Circuit, Reverse, High/Low Temperature),FAC580
Automatically Safeguards Your Car Battery,Charger & Power Station.
Short-circuit protection
Over-current protection
Over-heat protection
Over-voltage protection


Installation Steps

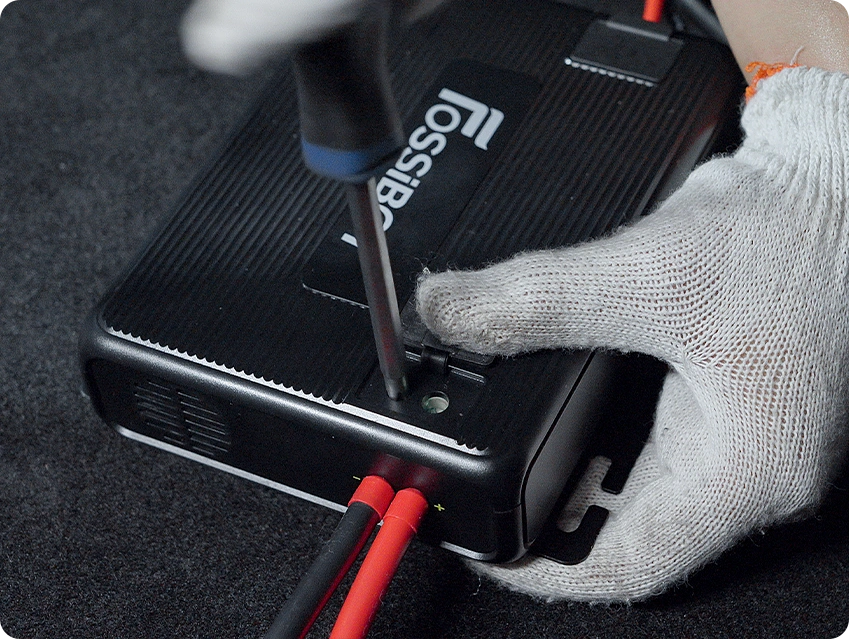

Step 1: Connect the cables
• Fix the input and output lines to FAC580 with screws.
* Before installation, check product functions properly.
* Connect the output and input cable of FAc580 properly

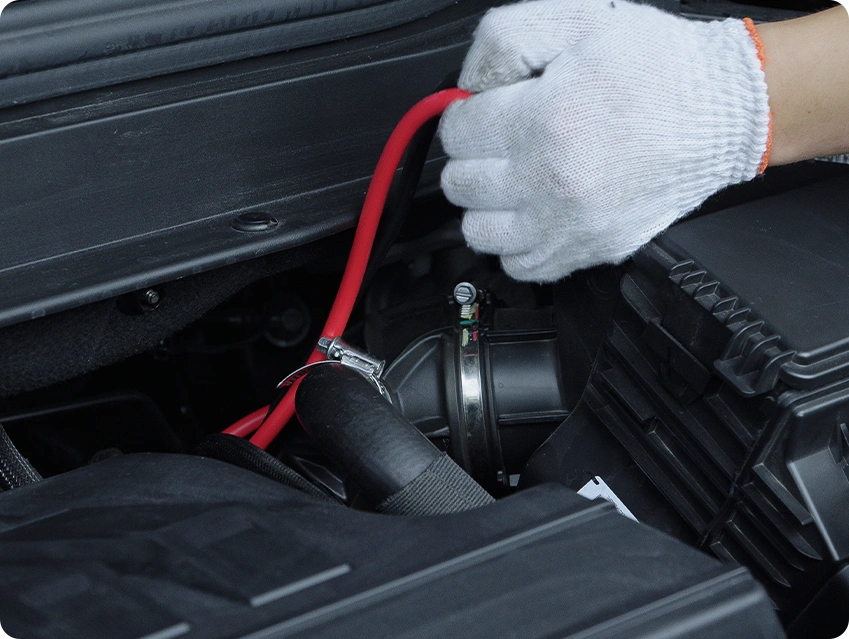

Step 2: Track
• Route the input cable from the vehicle to the car battery.

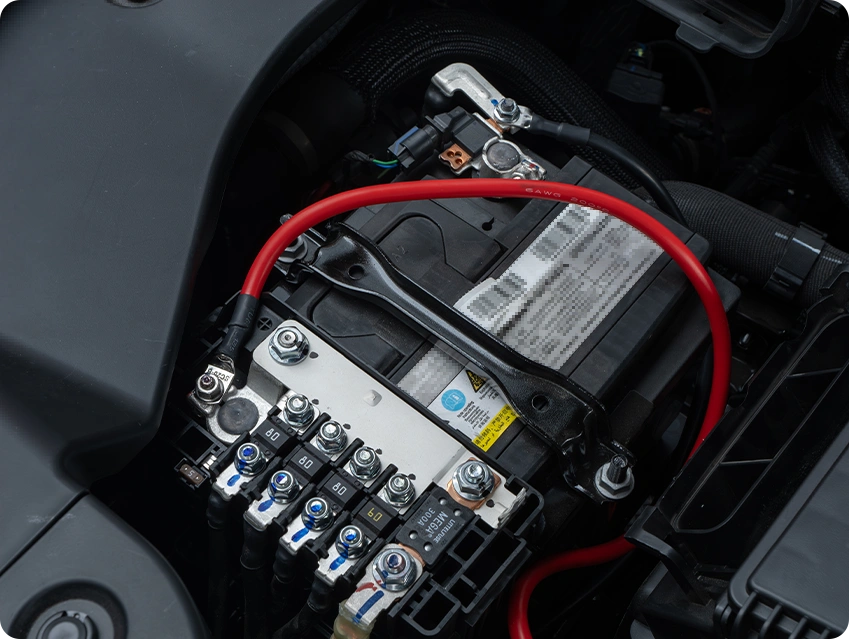

Step 3: Wire to Battery
• Ensure the FAC580 switch is in the off position, then connect the input cable to the car battery.
* Red wire → Battery +
* Black wire → Battery -

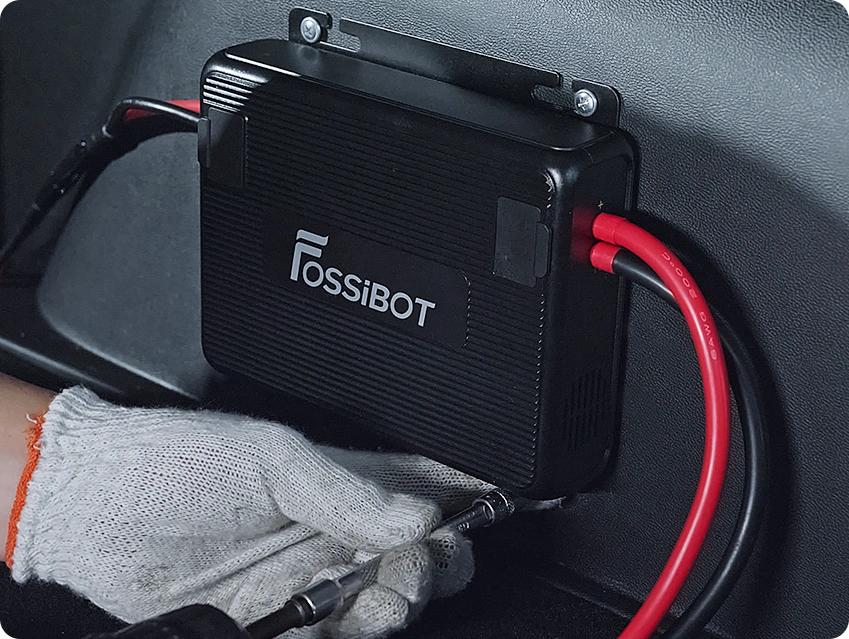

Step 4: Fixed
• Fix the FAC580 onto the car wall.

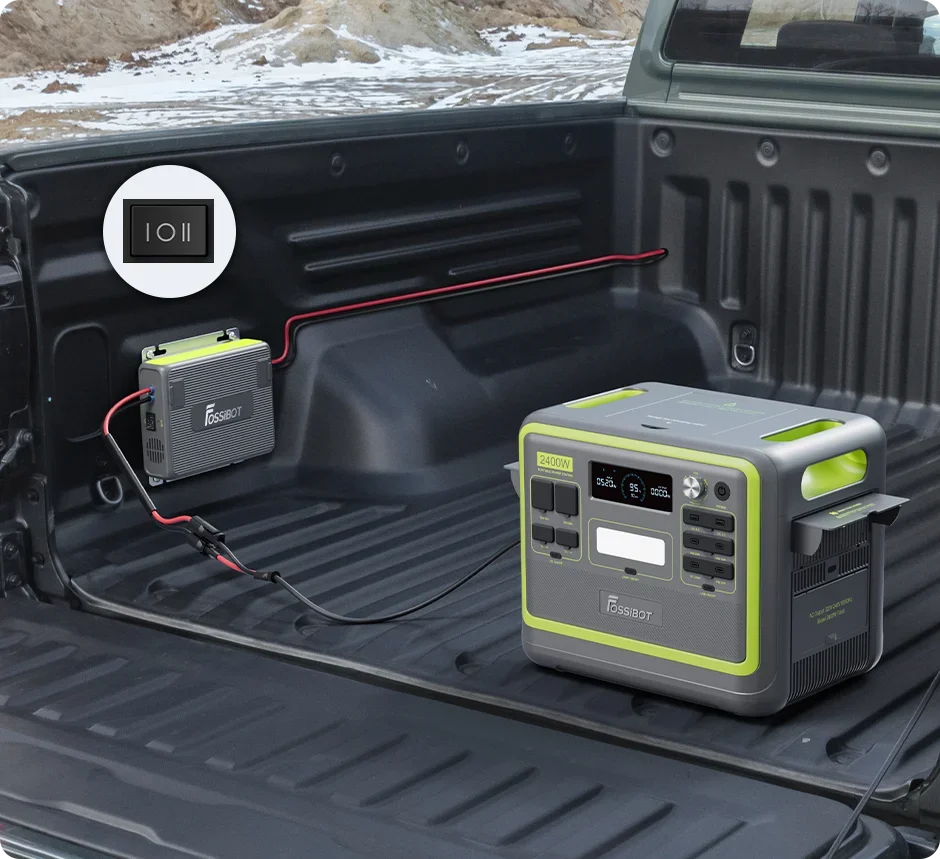

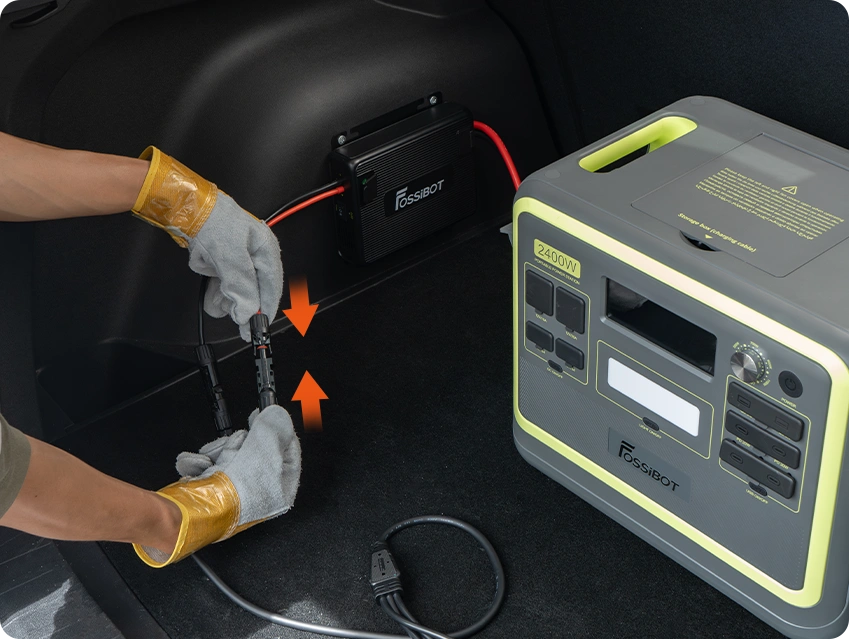

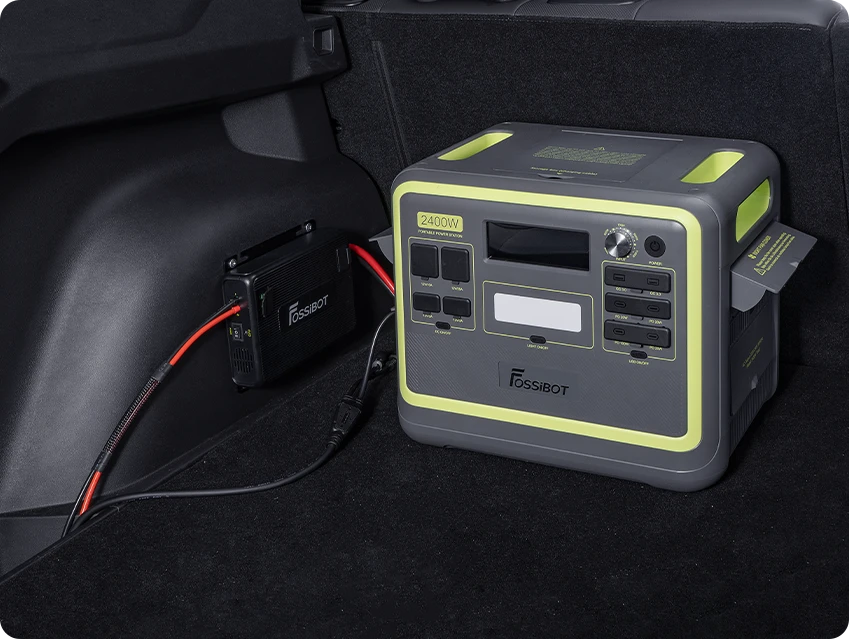

Step 5: Connect
• Connect the power station to the FAC580 with the XT90-MC4 cable.

Step 6: Select Mode & Starts Charging
• Switch to Mode 1, starts fast car charging during journey.
* Mode 1 (Recommended) For driving: Activate during journeys.
* Mode 2 (Emergency Use Only): when need urgent power with the engine off.

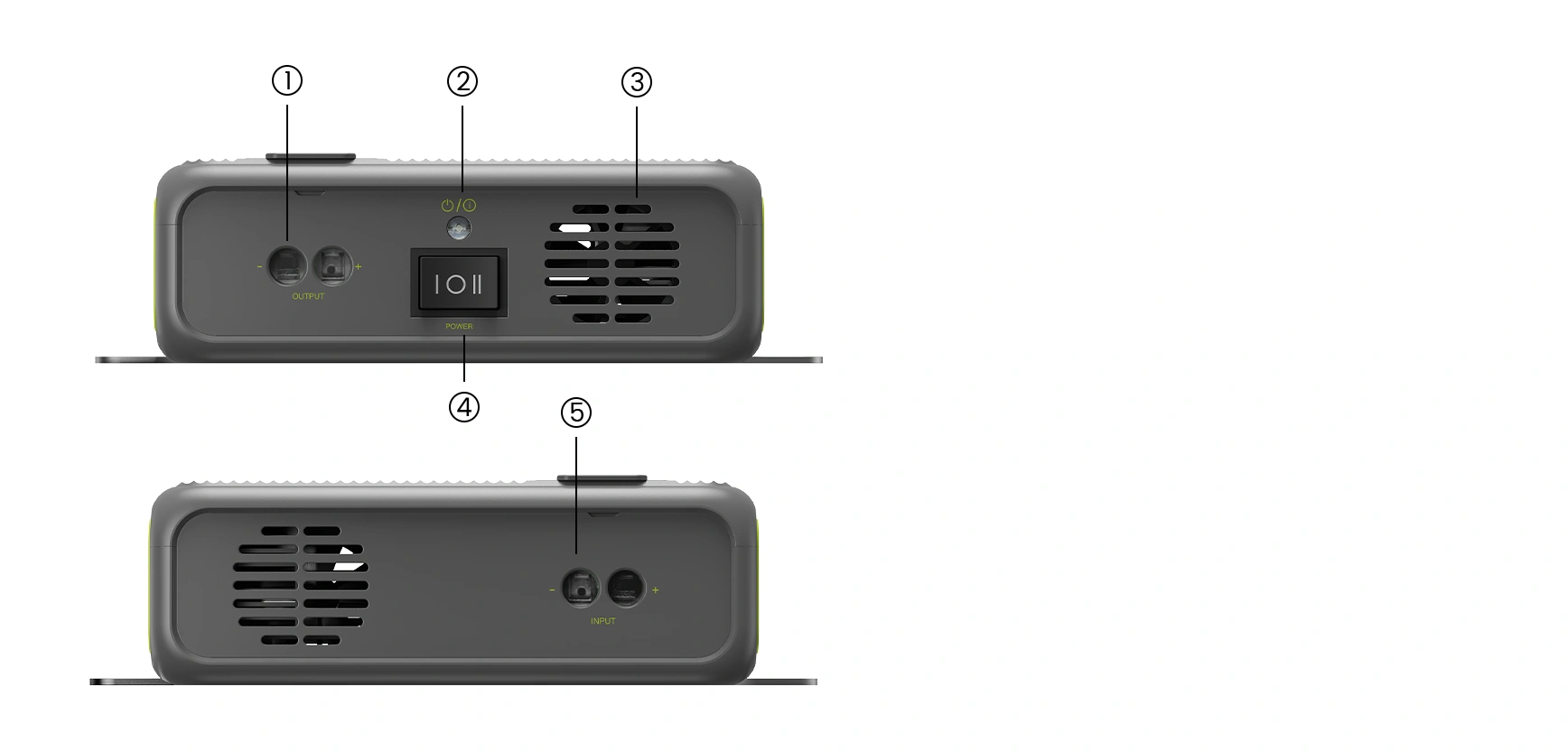

Product Display
