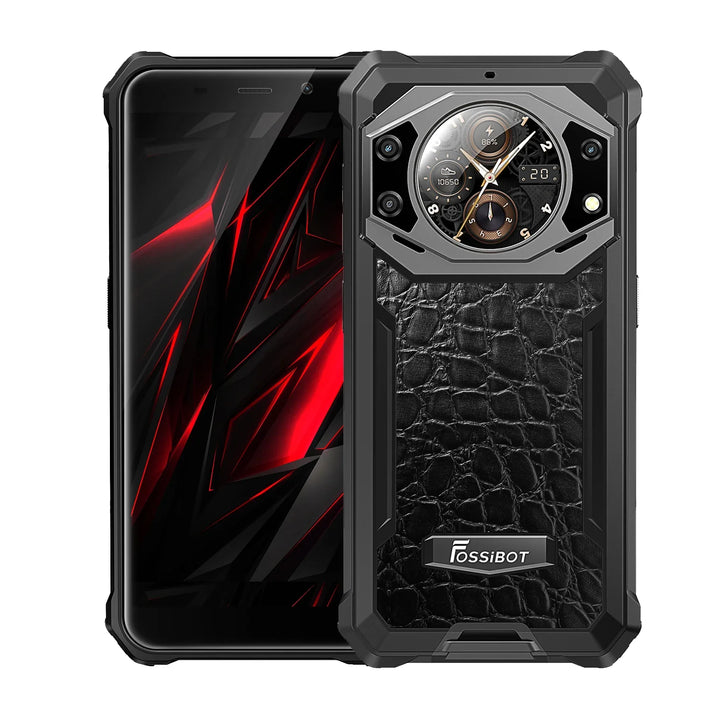

FOSSiBOT F101 PRO 15GB+128GB 5.45-Inch Main & 1.32-inch Innovative & Multifunction Rear Display 10600mAh Hac NFC Rugged Phone

Height:155.7mm

Width:76.2mm

Thickness:20.35mm

Weight:≈ 350g

Capacity: 10600mAh

Fast Charging: 18W(9V/2A)

Material: Built-in lithium-ion polymer

Voltage: 3.85V-404V

Standby Time: 1050H

Calling: 94H

* The endurance data comes from the FOSSiBOT laboratory

MediaTek Helio P60

CPU: MT8788

CPU Core Count: Octa-core

Process Node: 12 nm

CPU Framework: 4*Cortex -A73 2.0GHz+4*Cortex -A53 2.0GHz

GPU: ARM Mali-G72 MP3 700MHZ

RAM & ROM：8GB + 128GB

RAM Type: LPDDR4X

ROM Type: UFS

Expandable RAM Capacity: 7GB

Expandable ROM Capacity: Up to 1TB

Memory card type: T-flash card

Card Slot: 2 nano SIMs (SIM1 + SIM2) or 1 nano SIM+TF Card

*Available storage and RAM are less than the total memory due to storage of the operating system and software pre-installed in the device.
*The Virtual Memory Expansion can be activated in Settings and adds up to 7GB of RAM.

*T-flash card needs to be purchased separately.

*Please Confrim Your SIM Bands Compatibility Before Purchasing!

Supported network bands

Cellular :4G/3G/2G(Not compatible with AT&T or Cricket activations or with
CDMA Networks like Verizon, Sprint)

Global Pass Band

GSM: 850/900/1800/1900MHz

WCDMA: B1/B2/B4/B5/B8

FDD: B38/B39/B40/B41/B1/B2/B3/B4/B5

B7/B8/B12B17/B18/B19/B20/B25/B26/B28A

B28B/B66

Supports EDGE/GPRS

Size: 5.45” inches

Screen color : 16.7M

Resolution: 720*1440(HD+)

Aspect ratio: 18:9

Pixel density: 295PPI

Screen brightness: 400cd/m²(MIN),440cd/m²(TYP)

Screen-to-body ratio: 77%

Type: TFT-TP LCD

Size: 1.32” inches

Screen color : 262,144 color

Resolution: 360*360

Aspect ratio: 18:9

Pixel density: 385PPI

Screen contrast: 1000typ

Screen brightness: 300cd/m²(MIN),350cd/m²(TYP)

Screen-to-body ratio: 77%

Type: TFT-TP LCD

Rear Cameras

24MP Samsung S5K2L8 24MP

Optical dimension: 1/3.2inch

Pixel size:3024*4032

Aperture: F2.2+/- 5%

Wide Angle: 82°

Function: Video / Picture/Beauty/HDR/ Mono/ Bokeh/ Pro/ Night

Rear camera video features

24MP full resolution at 24 fps,720p at 60 fps

Front Camera

8MP

Optical dimension:1/3.2inch

Pixel size: 2448*3264

Aperture: F2.2±5%

Wide Angle: 78°

Function: Video /Picture/ Beauty/Mono/FaceID

5MP Macro

AI Beautification

Water，Dust，And Shockresistant

IP68,IP69K,MIL-STD-810H

*This device has been tested in a controlled environment and certified to bewater, dust,and shock resistant in specific situations.

Customizable Key X 1

G-Sensor; Geomagnetism; Compass sensor; Proximity Sensor;Ambient Light Sensor; Gyroscope

Wi-Fi:

WLAN Protocol: IEEE802.11 a/b/g/n/ac/2.4G Wi-Fi/5G Wi-Fi

Wi-Fi Direct/Wi-Fi Display

Bluetooth: BT5.0

NFC: Support

HAC: Support

FM: Support

OTG: Support

*FM: Plug in headphones to support external playback
*OTG: Supports reverse charging

*To use the FM function on your smartphone, a virtual headset is required as an antenna. Please purchase a virtual headset separately.

GPS | GLONASS | Galileo | Beidou

G-Sensor;

Geomagnetism;

Compass sensor;

Proximity Sensor;

Ambient Light Sensor;

Gyroscope;

Video

AVI,MP4,WMV,RMVB,MKV,MOV,ASFRM,FLV

Audio

MP3,AAC.WAV.FLAC,WMA,OGG


GIF,JPEG,PNG,BMP

Ebook

TXT,HTML

Software Toolbox

Compass, Gradienter, Pic Hangin, SoundMeter, Magnifier, HeightMeasure,Warning, Protractor, Plumb Bob

Supports Fingerprint Unlock

Supports Face Unlock

USB interface type: Type-C

USB version: USB 2.0

Headphone jack type: Type-C

SIM card type: Nano-SIM card

Whether to support dual SIM card: support

*Nano SIM+Nano SIM OR Nano SIM+TF Card

Android 13

1x F101 Pro

1x SIM Card Pin

1x Type-C Cable

1x Quick Charger (18W)

1x Quick Guide

1x Warranty Card

1. Available storage and RAM are less than the total memory due to the storage of the operating system and software pre-installed in the device. FOSSiBOT FOSSiBOT F101 Pro supports expansion T-flash card.

2. Charging rates are based upon the use of the included charger. Actual results may vary.

3. Size and weight vary by configuration and manufacturing process.

4. The camera software functions are subject to actual presence, some functions and names may vary depending on the software version.

5. FOSSiBOT F101 Pro is shockproof, water, and dust resistant and was tested under controlled laboratory conditions with a rating of lP68under EC standard 60529 (maximum depth of 1.5 meters up to 30 minutes, Charaer and accessories are not water-resistant. Shockproof,water and dust resistance are not permanent and might decrease as a result of normal wear. Do not attempt to charge a wet
FOSSiBOT DT2 Liduid damage is not covered under warranty.

6.The support for 4G depends on the local carriers' network: when using two 4G SIM cards, only one of them supports 4G network standbv which can be selected at Network Settings.

7. Dual 4G SIM requires the support of local telecom operator services, and may not be available in all regions.

8. Only certain regions and telecom operators support VoLTE.

9. Download speed data are theoretical values under laboratory test, data sources: MediaTek.

10. Even if a device supports some or all of the requiredtreduenciestorthis carrierwilnotoeaoeto connectunless the deviceis approved for this network.

11. Supported by Google Pay, you should download Google Pay to use it. Google Pay available countries and regions please refer to
https://pay.google.com/about.

12. The standard charaer is EU/US type, if vou need other chargers please purchase them separately.

13. Unless otherwise indicated on the FOSSiBOT F101 Pro product page, all data come from FOSSiBOT Laboratories, product
cations, and supplier data. The testing data may vary slichtly between different test versions and testing environments
shown on the procuct page are for reference onlv and mav not ref ect the actua product.

* The Android@ word mark and logos are registered trademarks owned by Google.

* The Bluetooth@ word mark and logos are registered trademarks owned by Bluetooth SIC, Inc.

*USB-Type CTM and USB-CTM are trademarks of USB Implementers Forum.
